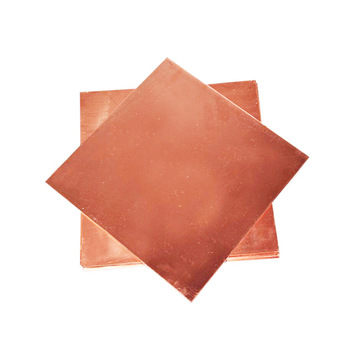

thick copper earth plate sheet price per kg

Short Description:


  • FOB Price: US $6 / Ton
  • Supply Ability: 10000 Tons per Month
  • Port: ShangHai
  • Payment Terms: L/C,D/A,D/P,T/T
  • Place of Origin: Shanghai, China (Mainland)
  • Model Number: C1100 C11000 C1221
  • Application: Industrial
  • Thickness: 0.1mm~200mm
  • Width: 20~2500mm
  • Product Detail

    Product Tags

    GB ISO ASTM JIS
    TU1 Cu-OF C10200 C1020
    T2 Cu-ETP C11000 C1100
    TP1 Cu-DLP C12000 C1201
    TP2 Cu-DHP C12200 C1220



    GB Composition(%)
    Cu P O Other
    TU1 99.97 0.002 less than 0.002 balance
    TU2 99.95 0.002 less than 0.003 balance
    T2 99.9 - balance
    TP1 99.9 0.004-0.012 - balance
    TP2 99.9 0.015-0.040 - balance



    ASTM Composition(%)
    Cu+Ag P O Other
    C10200 99.95 0.001-0.005 - balance
    C10300 99.95 0.001-0.005 - balance
    C11000 99.9 - balance
    C12000 99.9 0.004-0.012 - balance
    C12200 99.9 0.015-0.040 - balance



    Grade Temper Thickness /mm Tensile Strength
    Rm/MPa
    Elongation
    A11.2/%
    HV
    T2
    TP1 TP2
    TU1
    M20 4-14 no less than 195 no less than 30
    O60 0.3-10 no less than 205 no less than 30 no more than 70
    H01 215-295 no less than 25 60-95
    H02 245-345 no less than 8 80-110
    H04 295-395 90-120
    H06 no less than 350 no less than 110



    Copper Products Series
