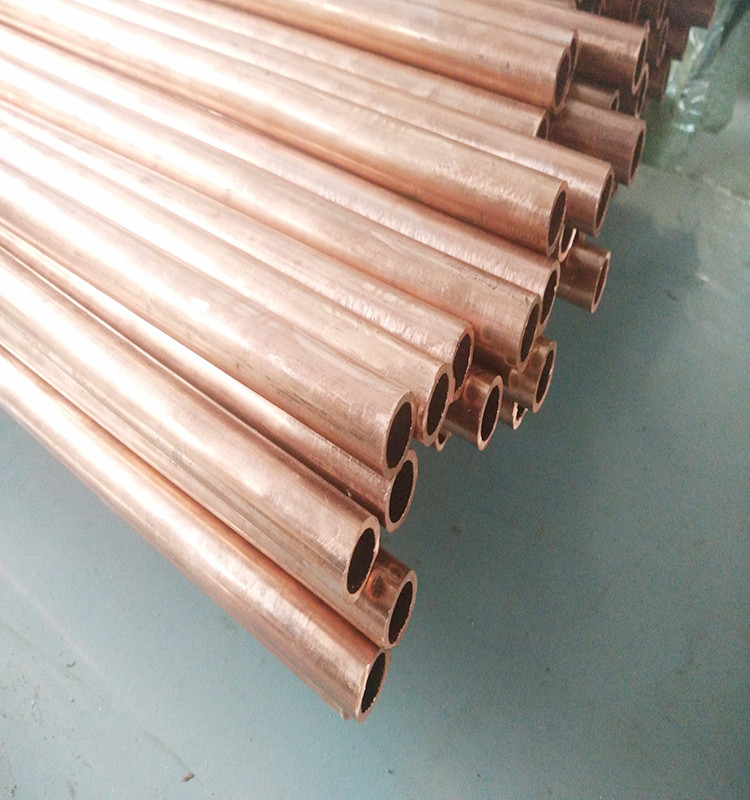

c11000 copper pipe tube

Short Description:


  • FOB Price: US $6 / Ton
  • Supply Ability: 10000 Tons per Month
  • Port: ShangHai
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags



    GB ISO ASTM JIS
    TU1 Cu-OF C10200 C1020
    T2 Cu-RTP C11000 C1100
    TP1 Cu-DLP C12000 C1201
    TP2 Cu-DHP C12200 C1220

    GB Composition(%)
    Cu P O Other
    TU1 99.97 0.002 less than 0.002 balance
    T2 99.9 - - balance
    TP1 99.9 0.004-0.012 - balance
    TP2 99.9 0.015-0.040 - balance

    ASTM Composition(%)
    Cu P O Other
    C10200 99.95 0.001-0.005 - balance
    C11000 99.9 - - balance
    C12000 99.9 0.004-0.012 - balance
    C12200 99.9 0.015-0.040 - balance

    Grade (China) Grade(Japan) Temper External Diameter/mm Tensile Strength
    Rm MPa
    Elongation A(%) Hardness
    no less than HV HBW
    T2
    TU1
    TP1 TP2
    C1100
    C1020
    C1201 C1220
    O60 All 200 41 40-65 35-60
    O50 All 220 40 45-75 40-70
    H02 no more than 15 250 20 70-100 65-95
    H04 no more than 6 290 95-130 90-125
    more than 6-10 265 75-110 70-105
    more than 10-15 250 70-100 65-95
    H06 no more than 3 360 no less than 110
