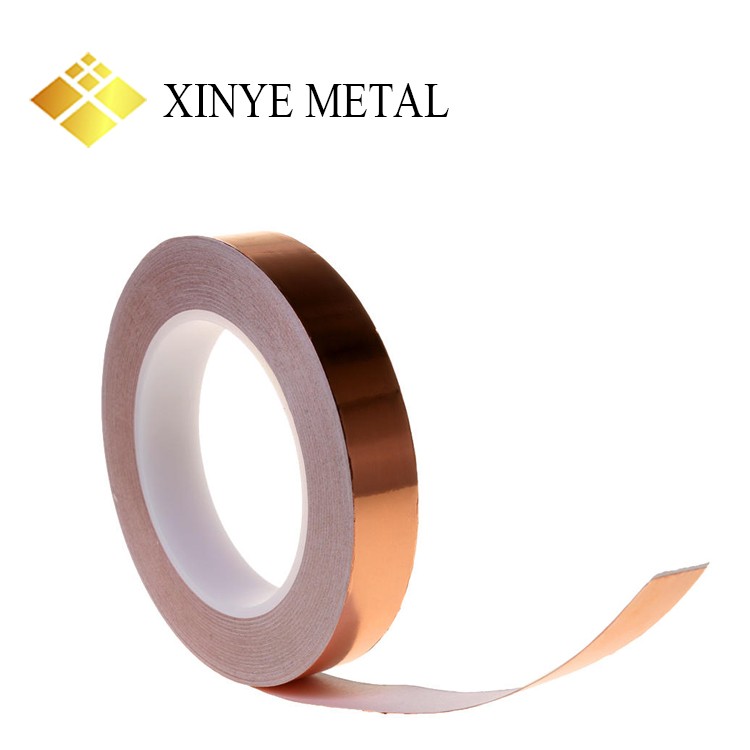

0.1mm thick copper foil tape price

Short Description:


  • FOB Price: US $6 / Ton
  • Supply Ability: 10000 Tons per Month
  • Port: ShangHai
  • Payment Terms: L/C,D/A,D/P,T/T
  • Application: Electronic
  • Width: 7--610mm
  • Material: Red Copper
  • Grade: Pure Copper
  • Model Number: C1100
  • Place of Origin: Shanghai, China (Mainland)
  • Product Detail

    Product Tags



    GB ISO ASTM JIS
    TU1 Cu-OF C10200 C1020
    T2 Cu-RTP C11000 C1100
    TP1 Cu-DLP C12000 C1201
    TP2 Cu-DHP C12200 C1220

    GB Composition(%)
    Cu P O Other
    TU1 99.97 0.002 less than 0.002 balance
    T2 99.9 - - balance
    TP1 99.9 0.004-0.012 - balance
    TP2 99.9 0.015-0.040 - balance

    ASTM Composition(%)
    Cu P O Other
    C10200 99.95 0.001-0.005 - balance
    C11000 99.9 - - balance
    C12000 99.9 0.004-0.012 - balance
    C12200 99.9 0.015-0.040 - balance

    Grade(China) Grade(Japan) Temper Thickness/mm Tensile Strength Rm(N/mm2) Elongation A1 1.3% Hardness HV
    T2 T3 TU1 TU2 TP1 TP2 C1100 C1020 C1220 O60 more than 0.15 no less than 195 no less than 30 no less than 70
    H01 215-295 no less than 25 60-95
    H02 245-345 no less than 8 80-110
    H04 295-395 no less than 3 90-120
    H06 no less than 350 no less than 110
