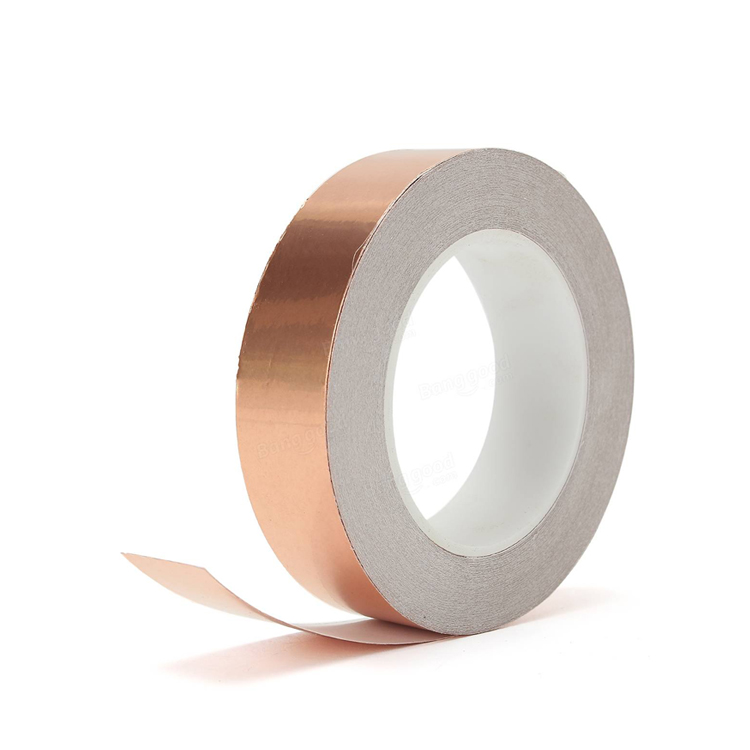

0.009mm refined copper foil tape for 18650 battery

Short Description:


  • FOB Price: US $6 / Ton
  • Supply Ability: 10000 Tons per Month
  • Port: ShangHai
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags



    GB ISO ASTM JIS
    TU1 Cu-OF C10200 C1020
    T2 Cu-RTP C11000 C1100
    TP1 Cu-DLP C12000 C1201
    TP2 Cu-DHP C12200 C1220

    GB Composition(%)
    Cu P O Other
    TU1 99.97 0.002 less than 0.002 balance
    T2 99.9 - - balance
    TP1 99.9 0.004-0.012 - balance
    TP2 99.9 0.015-0.040 - balance

    ASTM Composition(%)
    Cu P O Other
    C10200 99.95 0.001-0.005 - balance
    C11000 99.9 - - balance
    C12000 99.9 0.004-0.012 - balance
    C12200 99.9 0.015-0.040 - balance

    Grade(China) Grade(Japan) Temper Thickness/mm Tensile Strength Rm(N/mm2) Elongation A1 1.3% Hardness HV
    T2 T3 TU1 TU2 TP1 TP2 C1100 C1020 C1220 O60 more than 0.15 no less than 195 no less than 30 no less than 70
    H01 215-295 no less than 25 60-95
    H02 245-345 no less than 8 80-110
    H04 295-395 no less than 3 90-120
    H06 no less than 350 no less than 110



    Classification/um 12 18 35
    Width/mm 520 520 520
    Purity(%) ≧99.9
    Density(g/m³) 8.89
    Area Weight(g/㎡) 107±3 160±5 311±6
    Tensile Strength(N/㎜²) Normal ≧0.5 ≧1.0 ≧1.0
    180℃30Min ≧5 ≧7 ≧10
    Roughness Ra(μm) ≦0.35
    Rz(μm) ≦2
    Anti-oxidization 200℃,≧90Minnondiscolouring
    temperature85℃,humidity85%,nondiscolouring
    Solder Resistance 288℃/10S no bubbles
    Peel Strength(N/㎜) ≧1.0 ≧1.0 ≧1.0
    Surface Quality No wrinkles, no color difference, no scratches, no convex and concave points
    Storage Condition Temperature0℃≦t≦25℃,RH≦60%,90 days
    Chemical Resistance(%) ≦5


    adda6a225e4ff347a26d7f4253c4db7Copper Products Series
